Place of Origin: China
Brand Name: KINGONE
Model Number: GQ-ZH-75H-B
Aspect Ratio: 16:9
Panel Type: LCD Display
Panel Size: 75 Inch
Resolution: 3840x2160, 4K screen
Writing Method: Pen/finger touch
Warranty: 3 Years
Certificates: CE CB FCC RoHS
Surface: 4mm Tempered glass
Installation Way: Wall mounted / Floor stand
Application: Classrooms, conference rooms
Operating system: Android+Windows 10/11

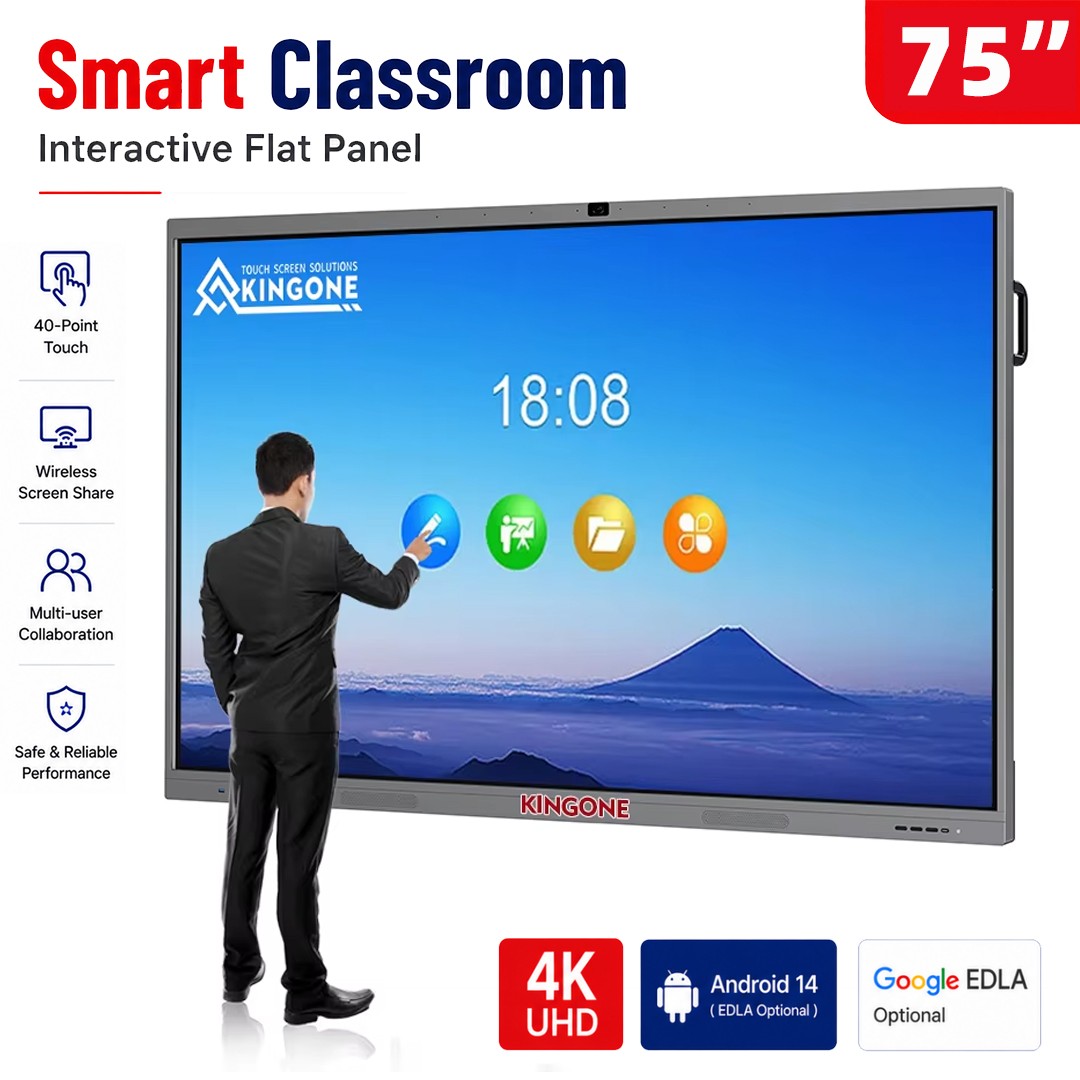

KINGONE Interactive Smart Whiteboard
KINGONE Interactive Smart Whiteboard is an advanced all-in-one display solution designed for modern education, business collaboration, and professional presentations. Developed by KINGONE, a reliable R&D-driven manufacturer established in 2012, this smart whiteboard combines cutting-edge display technology, precise touch interaction, and intelligent software into a single powerful device.
Featuring a large 4K UHD display with high brightness and wide viewing angles, the KINGONE Interactive Smart Whiteboard delivers clear, vivid visuals that enhance engagement in classrooms, meeting rooms, and training environments. The smooth infrared or capacitive touch technology supports multi-touch writing, annotation, zooming, and gesture control, allowing multiple users to interact simultaneously with high accuracy and low latency.
Equipped with an Android system and optional OPS Windows module, the smart whiteboard supports a wide range of applications including wireless screen sharing, video conferencing, document editing, and multimedia playback. Users can easily present content directly from laptops, tablets, or smartphones without additional equipment, significantly reducing setup complexity and improving efficiency.
The KINGONE Interactive Smart Whiteboard is widely used in schools, universities, corporate meeting rooms, government institutions, hotels, and exhibition centers. Its integrated design replaces traditional combinations of projectors, whiteboards, PCs, and audio systems, offering a cleaner installation and lower maintenance cost.
With multiple size options, flexible OEM/ODM customization, strict quality control, and reliable after-sales support, KINGONE provides smart whiteboard solutions tailored to different project requirements worldwide. Whether for education, training, or professional collaboration, KINGONE Interactive Smart Whiteboard delivers a smarter, more efficient, and more interactive experience.
Product Specification
| Display Specs | Diagonal size : | 75" | ||||||
| Touch Type : | 40 Points Infrared Touch | |||||||
| Resolution : | 3840*2160 , 4K | |||||||
| Aspect ratio : | 16:9 | |||||||
| Color : | 16.7M | |||||||
| Brightness : | 350 nits | |||||||
| Viewing Angel : | 178° /178° | |||||||
| Backlight : | LED | |||||||
| Response time : | 5 ms | |||||||
| Fresh Frequency : | 50 Hz - 60 Hz | |||||||
| Contrast ratio : | 1200:1 or above | |||||||
| Glass Hardness: | 7Moh | |||||||
| Protection : | More than 50000 hours | |||||||
| Android Specs | O.S. : | Android 14 | ||||||
| CPU: | eight core A55 | |||||||
| RAM : | 8G | |||||||
| ROM : | 128G | |||||||
Interfaces | 2 x HDMI In 1 x HDMI Out 4 x USB 1x USB type с 1x USB Touch 1 x Mic In 1 x RJ45 Wi-Fi | |||||||
| CAM + MIC | Built-in 13MP camera + 8 array MIC on the top. Support 4K | |||||||
| Speaker | 15W*2 | |||||||
| WIFI | WiFi5 2.4G+5G+Bluetooth5.0 | |||||||
| Languages | Supports multiple languages, including Arabic, English, Spanish, French, and others | |||||||
| OPS Slot | Available | |||||||
| Power | Max power consumption: | ≤195W【OPS not included】 | ||||||
| Standby : | ≤0.5W | |||||||
| Voltage : | 220V-240V,50Hz | |||||||
| Size and Packing | Overall Size | 1705.4 * 1040.1 *103.7 mm | ||||||
| Display Area size | 1650.7 x 928.9 mm 【HxV】 | |||||||
| Packing size /Carton box : | 179.6*20*112.0 CM | |||||||
| N.W. | 46 KG | |||||||
| Included accessories | Wall mount accessories | |||||||
| 2 xTouch Pen | ||||||||
| Remote Control | ||||||||
| All necessary accessories, cables | ||||||||
| 5 meter cable HDMI | ||||||||
| Warranty | 3 Years, Parts & Labor (on-Site) | |||||||
| Certification | FCC,CE | |||||||



FAQ:
Our interactive whiteboard supports Android system by default, and it can also support Windows system through an OPS computer module. Users can easily switch between Android and Windows to meet different teaching and conference needs.
We provide multiple sizes including 55", 65", 75", 86", 98", and 110". These sizes are widely used in classrooms, training centers, conference rooms, and educational institutions.
Yes, the interactive whiteboard supports high-precision infrared touch technology with up to 20-point multi-touch. Multiple users can write, draw, and interact on the screen simultaneously, making it perfect for collaborative learning and meetings.
Yes, the device supports video conferencing software such as Zoom, Microsoft Teams, and Google Meet when connected to the internet. It can also be used for online teaching, remote meetings, and interactive presentations.
Yes, our interactive whiteboard comes with built-in interactive whiteboard software, which supports screen annotation, file sharing, wireless screen mirroring, and multimedia presentation, making teaching and meetings more efficient.
We offer up to 3 years warranty for the interactive whiteboard. Our technical team also provides remote technical support, user manuals, and installation guidance to ensure smooth operation for our customers.
